4 Post 3 Car Stacker
Overview
The LL-432025 4 Post 3 Car Stacker is a heavy-duty parking system engineered to store up to three vehicles vertically within a single parking bay. Ideal for dealerships, workshops, apartment developments, and collector garages, this system transforms unused vertical space into practical parking capacity.
With robust hydraulic lifting, intelligent locking systems, and customisable finishing options, the LL-432025 combines industrial-grade performance with clean architectural design.
Solution Variations
Our standard triple stacker is also available in a lower-height variation, designed for applications with reduced overhead clearance. The key difference is the reduced overall unit height, making it better suited to sites with limited ceiling space.
With the lower-height configuration:
- Ground level clearance: 1850 mm
- Middle level clearance: 1600 mm
All other specifications remain the same as the standard model.
Model Number:
- LL432025.1
A specification sheet is available alongside the standard model for comparison.
Specifications
- Model LL-432025
- Lifting capacity Ground floor unlimited, 2nd floor 2500kg and 3rd floor 2000kg
- Lifting height Ground floor and 2nd floor 2100mm
- Usable platform width 2492mm
- Power pack 3Kw hydraulic pump
- Operation mode Key switch
- Operation voltage 24V
- Safety lock Dynamic anti-falling lock
- Lock release Semi-auto lock release
- Lifting time 68s
Key Features
Three Vehicle Storage Solution
Three Vehicle Storage Solution Efficiently stack up to three vehicles vertically while reducing the overall parking footprint.
Heavy-Duty Platform Capacity
Designed with a 2,500kg second-floor capacity and 2,000kg third-floor capacity to accommodate a wide range of passenger vehicles and SUVs.

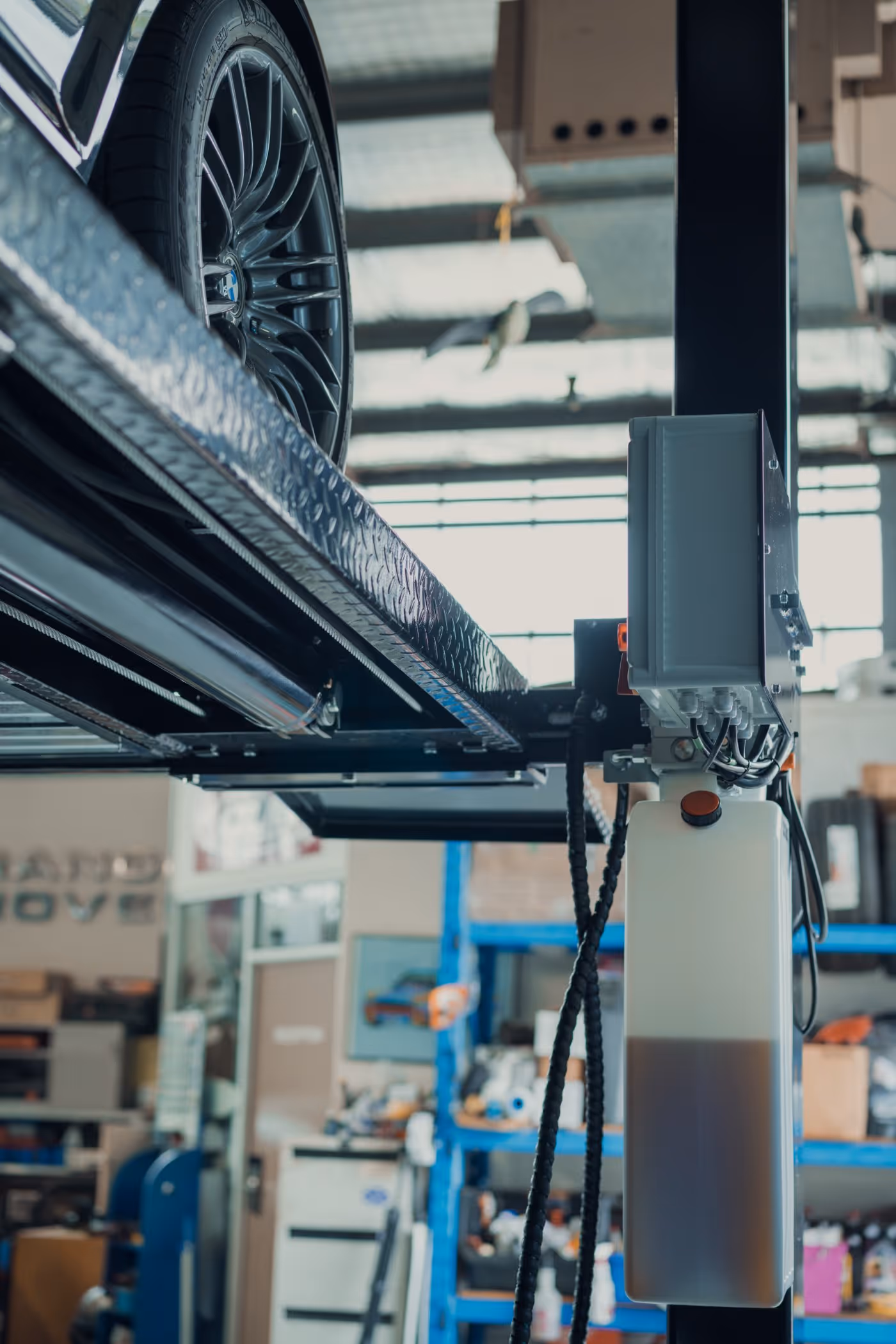

Commercial-Grade Hydraulic System
Powered by a reliable 3kW hydraulic pump for smooth and dependable lifting performance.
Advanced Safety Protection
Equipped with a dynamic anti-falling lock system and semi-automatic lock release for secure operation.

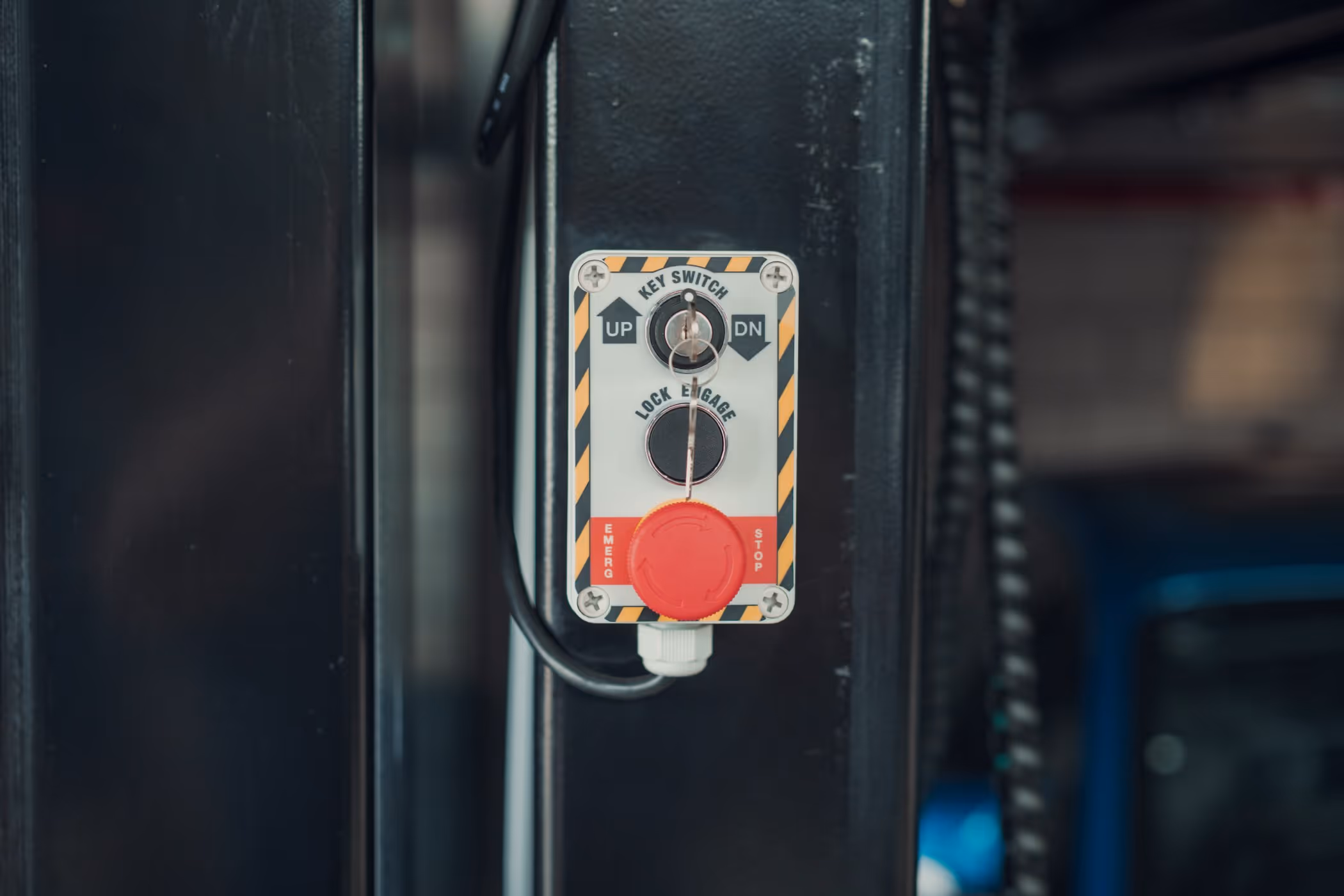

Simple & Intuitive Controls
Easy key switch operation with low-voltage 24V controls for safe day-to-day use.
Custom Powder-Coated Finish
Choose a finish colour to suit your project, showroom, or architectural design.
Why Choose Leverage Lifts
Built for Real-World Use
Our car lifts are designed for everyday functionality — not just technical specifications. Reliable performance, day in, day out.
Tailored to Your Project
We work with your site constraints to recommend the right solution — not a one-size-fits-all system that may not suit your needs.
Clear Process
From initial enquiry through to installation, we keep things simple and transparent. No surprises, no unnecessary complexity.
Premium Without Complexity
High-quality systems delivered with a clean, considered approach — without the complication you'd expect from a technical product.
What Our Customers Say
Ready to maximise your parking capacity?
Get in touch with our team to discuss your project or request a quote today.
